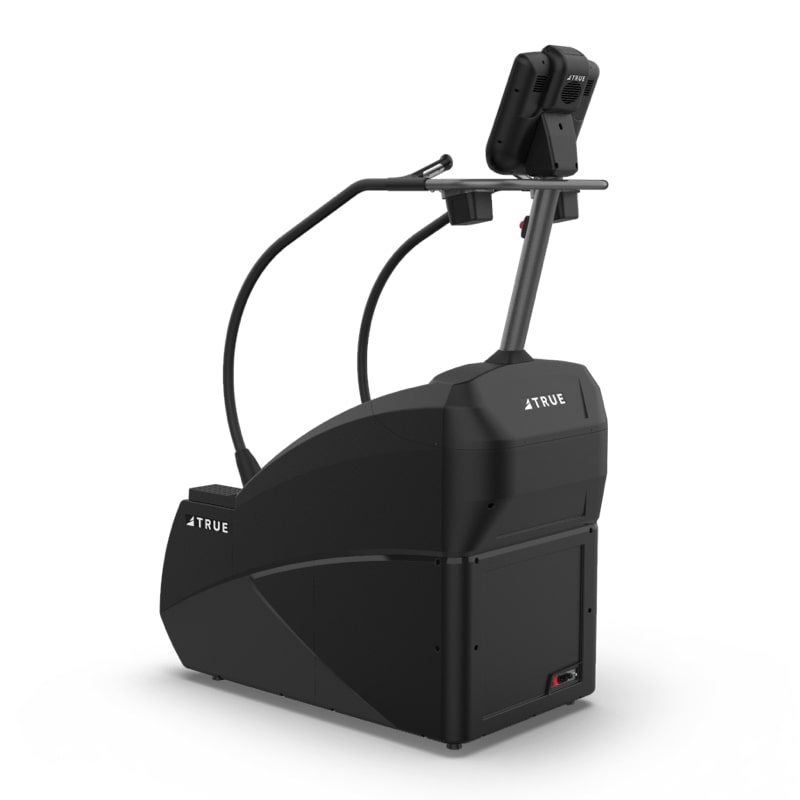

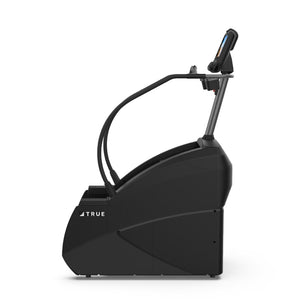

The TRUE Palisade Climber is a commercial stair climber built for member experience and facility serviceability. Deep steps (about 217 sq. in. per step), a quiet AC drive, 20 resistance levels, and a dual-braking safety system make it a strong choice for clubs that want serious climbing without high-impact running.
Customize with four UNITE consoles (LED, 10″, 16″, 22″). 16″ and 22″ consoles are available with or without TV tuner.
Palisade Climber Key Features
- Deep commercial steps — ~217 sq. in. per step; step size 11.2″ × 20″ × 8″
- AC drive for durability, low noise, and smooth motion
- 20 resistance levels with thumb-switch controls on the handlebars
- Dual-braking system (dynamic speed regulation + mechanical lock when not in use)
- Infrared sensors stop/lock stairs if a person or object is detected; optional photo-interrupt sensor
- Step-up assistance: rear steps, side pegs, and dipping handrail
- Service-friendly design with removable front panel access and fixed transport wheels
- Optional sweat tray (SKU VC900-Tray)
Palisade Climber Links:
Console Options:

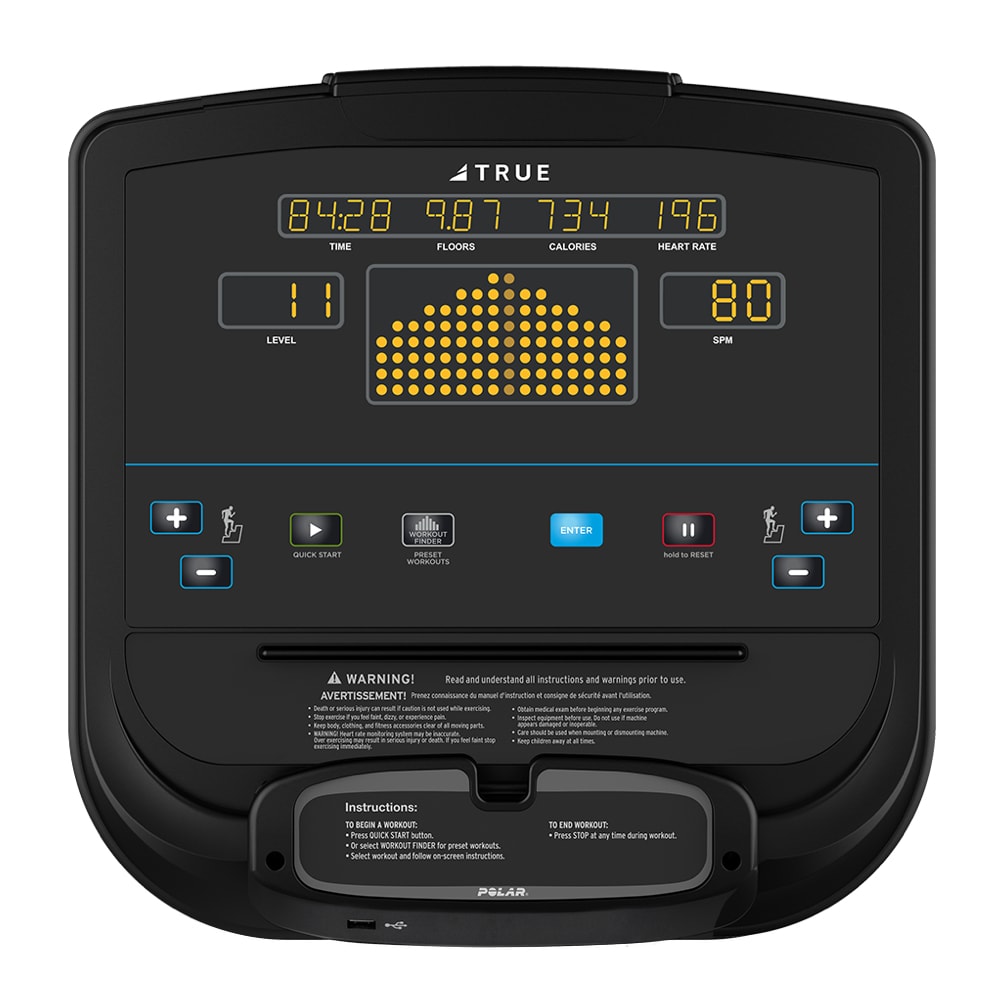

- UNITE LED

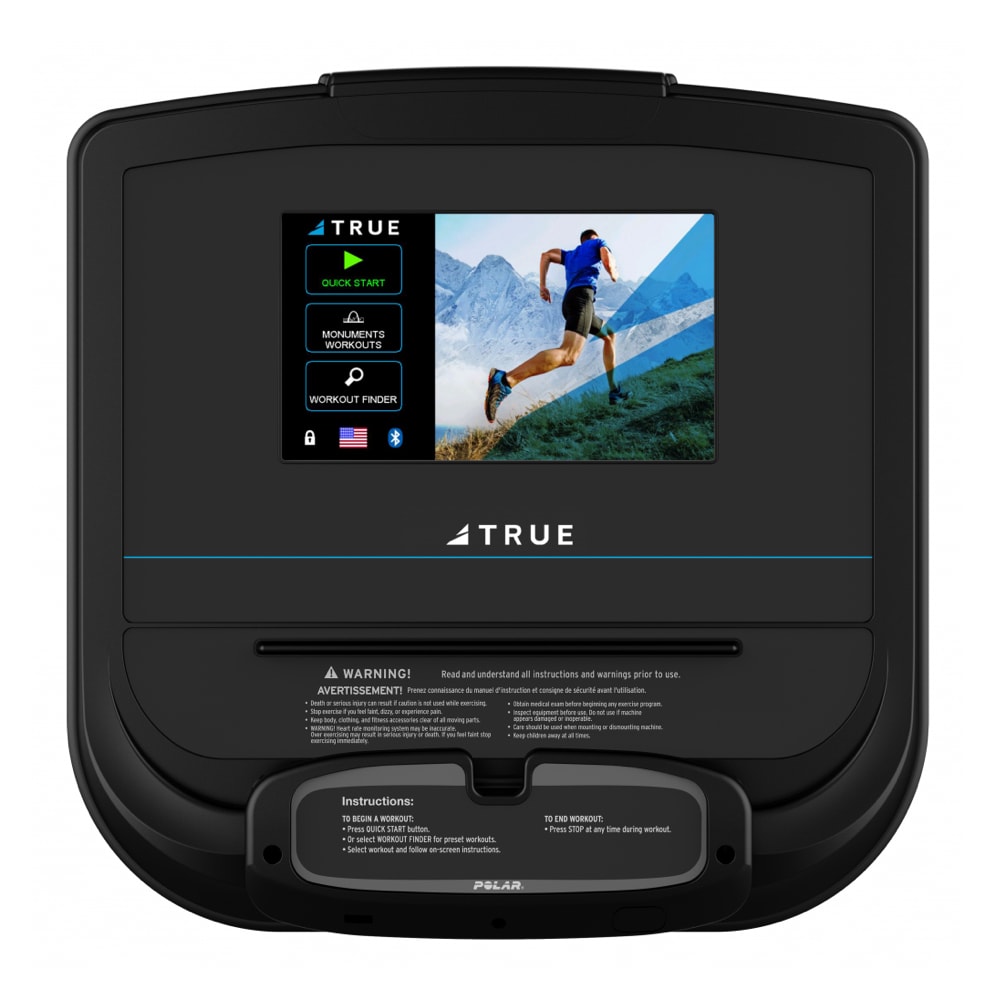

- UNITE 10″ Touchscreen

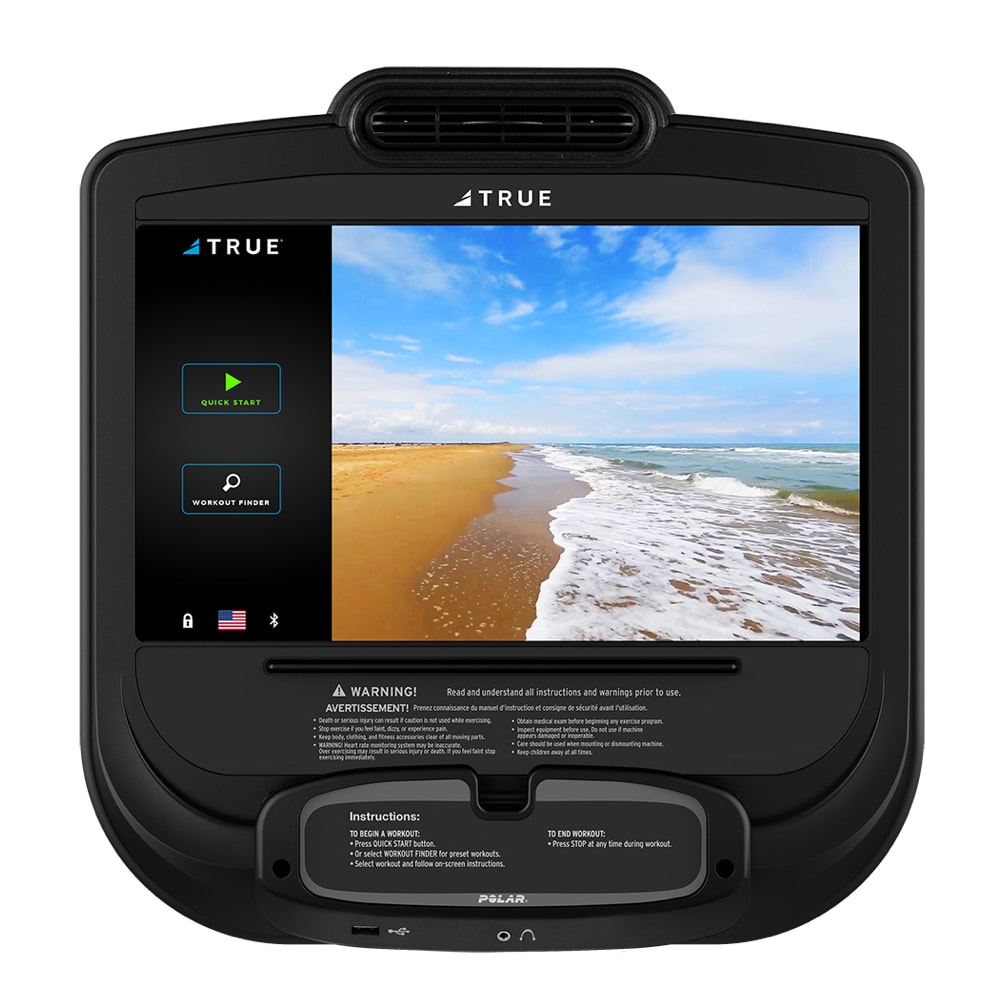

- UNITE 16″ Touchscreen — No Tuner or W/Tuner
- UNITE 22″ Touchscreen — No Tuner or W/Tuner
Palisade Climber Specifications
| Model | TRUE Palisade Climber (Vapor Series) — base VC1-0A-35 |
|---|---|
| Drive System | AC Drive System |
| Resistance Source | Double-braking system |
| Resistance Levels | 20 |
| Step Area | 217 sq. in. per step (manufacturer claim: among deepest in industry) |
| Step Dimensions | 11.2″ × 20″ × 8″ (28 × 51 × 20 cm) |
| Step-Up Height | 13.3″ (34 cm) |
| Safety | Dual-brake system; infrared object detection; optional photo-interrupt safety sensor |
| Step-Up Assistance | Rear steps, integrated side pegs, dipping handrail |
| Available Consoles | UNITE LED, UNITE 10″, UNITE 16″, UNITE 22″ (tuner options on 16″/22″) |
| Dimensions (L × W × H) | 60″ × 32″ × 88″ (153 × 80 × 222 cm) |
| Minimum Ceiling Height | 10 feet recommended |
| Machine Weight | 408 lbs (185 kg) |
| Shipping Weight | 541 lbs (245 kg) |
| Maximum User Weight | 400 lbs (181 kg) |
| Power | 120V & 220V with step-up/step-down transformers (NEMA 5-15); cord 12′ |
| Portability | Four transport wheels |
| Sweat Tray | Optional (SKU VC900-Tray) |
| Commercial Warranty | Frame 7 Years; Parts 3 Years; Labor 2 Years; Consoles 3 Years (U.S./Canada) |
About TRUE Fitness
TRUE Fitness designs commercial cardio for high-traffic facilities. Palisade commercial warranty terms are listed above (frame 7 years; parts 3; labor 2; consoles 3 — U.S./Canada).
